美国Lansmont SAVER 3D15 低频运输环境记录仪,海洋运输环境分析,运输状态跟踪,振动路谱生成,加速度记录,运输数据采集记录(进口.兰斯蒙特)

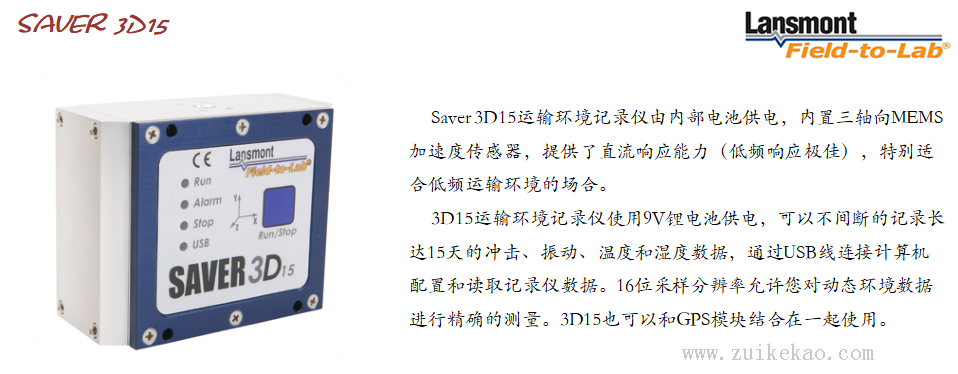

Saver 3D15运输环境记录仪由内部电池供电，内置三轴向MEMS 加速度传感器，提供了直流响应能力（低频响应**），特别适合低频运输环境的场合。

3D15运输环境记录仪使用9V锂电池供电，可以不间断的记录长达15天的冲击、振动、温度和湿度数据，通过USB线连接计算机配置和读取记录仪数据。16位采样分辨率允许您对动态环境数据进行精确的测量。3D15也可以和GPS模块结合在一起使用。

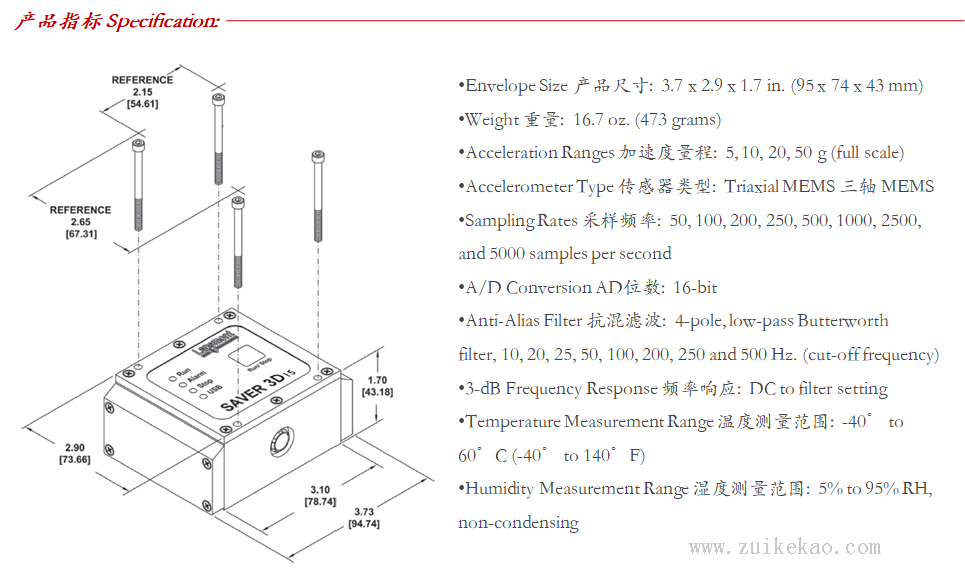

产品指标 Specification:

Envelope Size 产品尺寸:   3.7 x 2.9 x 1.7 in. (95 x 74 x 43 mm)

Weight 重量:   16.7 oz. (473 grams)

Acceleration Ranges 加速度量程:   5, 10, 20, 50 g (full scale)

Accelerometer Type 传感器类型:   Triaxial MEMS 三轴 MEMS

Sampling Rates 采样频率:   50, 100, 200, 250, 500, 1000, 2500, and 5000 samples per second

A/D Conversion AD位数:   16-bit

Anti-Alias Filter 抗混滤波:   4-pole, low-pass Butterworth filter, 10, 20, 25, 50, 100, 200, 250 and 500 Hz. (cut-off frequency)

3-dB Frequency Response 频率响应:   DC to filter setting

Temperature Measurement Range 温度测量范围:   -40° to 60°C (-40° to 140°F)

Humidity Measurement Range 湿度测量范围:   5% to 95% RH, non-condensing

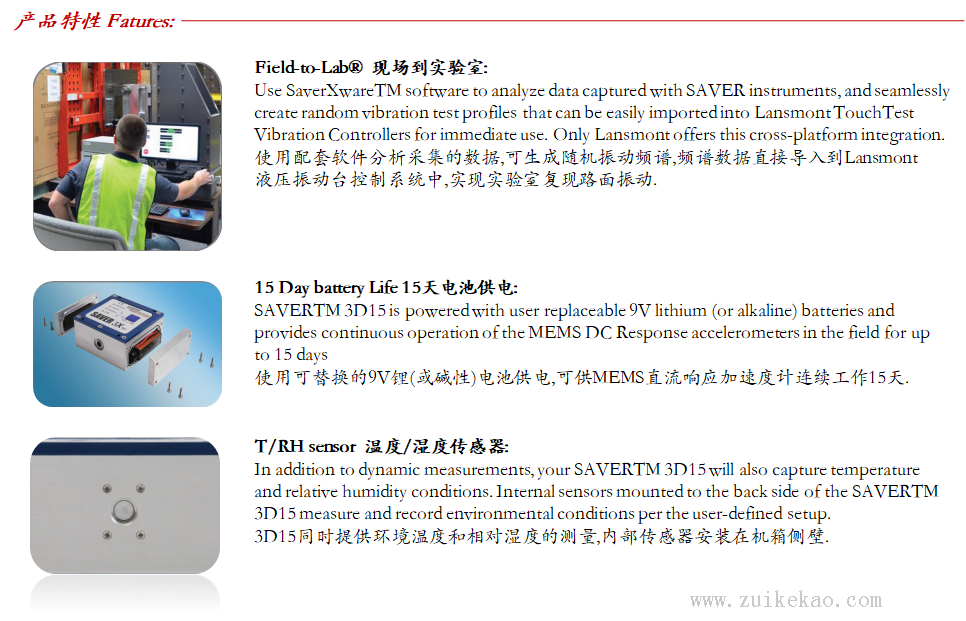

产品特性 Fatures:

Field-to-Lab®   现场到实验室:

Use SaverXwareTM software to analyze data captured with SAVER instruments, and seamlessly create random vibration test profiles that can be easily imported into Lansmont TouchTest Vibration Controllers for immediate use. Only Lansmont offers this cross-platform integration.

使用配套软件分析采集的数据,可生成随机振动频谱,频谱数据直接导入到Lansmont

液压振动台控制系统中,实现实验室复现路面振动.

15 Day battery Life 15天电池供电:

SAVERTM 3D15 is powered with user replaceable 9V lithium (or alkaline) batteries and provides continuous operation of the MEMS DC Response accelerometers in the field for up to 15 days

使用可替换的9V锂(或碱性)电池供电,可供MEMS直流响应加速度计连续工作15天.

T/RH sensor   温度/湿度传感器:

In addition to dynamic measurements, your SAVERTM 3D15 will also capture temperature and relative humidity conditions. Internal sensors mounted to the back side of the SAVERTM 3D15 measure and record environmental conditions per the user-defined setup.

3D15同时提供环境温度和相对湿度的测量,内部传感器安装在机箱侧壁.

产品选项 Options:

External Battery Pack 外接电池:

For some recording applications, 15 days may not be enough recording time. Not a problem. Lansmont offers an External Battery Pack that extends the continuous operation time from 15 to 40 days.

如果15天内置供电时间不够,Lansmont也提供外置供电组件，待机提高到40天.

Mounting Kits 安装组件:

Mounting kits can make it easier to fix SAVERTM 3D15s to vehicles or structures. Kits include mounting plates and attachment hardware. If you are attaching to a ferrous surface, magnetic mounting kits are available.

使用安装组件可以快速安装Saver到车辆或结构中，如果是铁质表面，还可以选择磁性安装组件

Data Analysis Center 数据分析服务:

Trust Lansmont data specialists to interpret your data and provide you with even greater confidence. Lansmont data specialists are experts at acquiring, analyzing and summarizing data; if you need help defining parameters or protocols, we can help.

如果您有需要，Lansmont数据专家可以帮助您分析总结你的测试数据，也可以帮助您设定测量参数条件

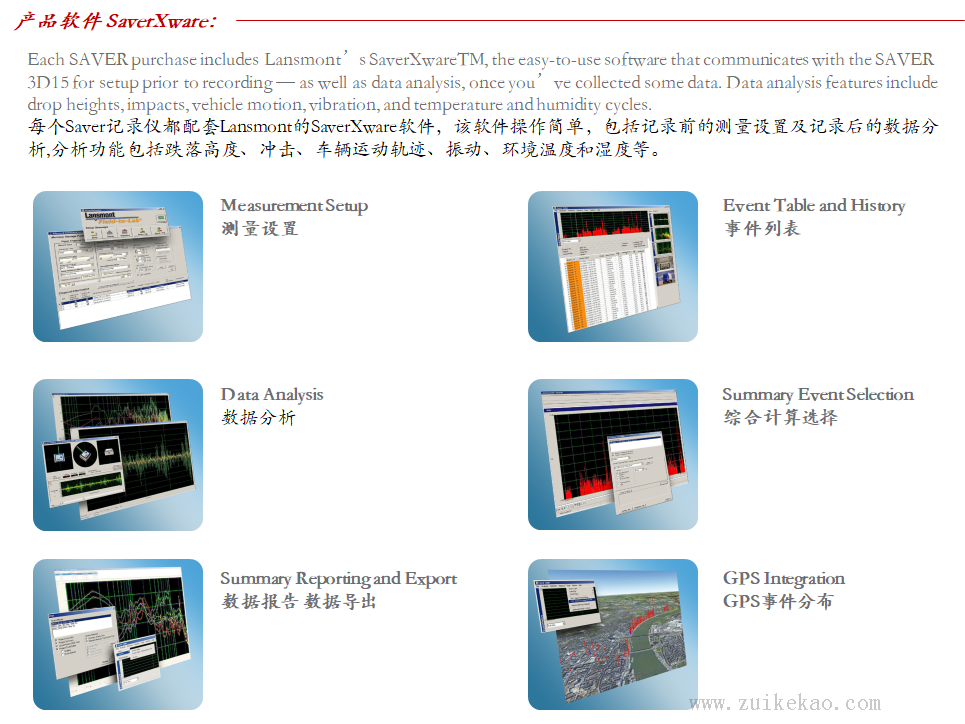

产品软件 SaverXware：

Each SAVER purchase includes Lansmont’s SaverXwareTM, the easy-to-use software that communicates with the SAVER 3D15 for setup prior to recording — as well as data analysis, once you’ve collected some data. Data analysis features include drop heights, impacts, vehicle motion, vibration, and temperature and humidity cycles.

每个Saver记录仪都配套Lansmont的SaverXware软件，该软件操作简单，包括记录前的测量设置及记录后的数据分析,分析功能包括跌落高度、冲击、车辆运动轨迹、振动、环境温度和湿度等。

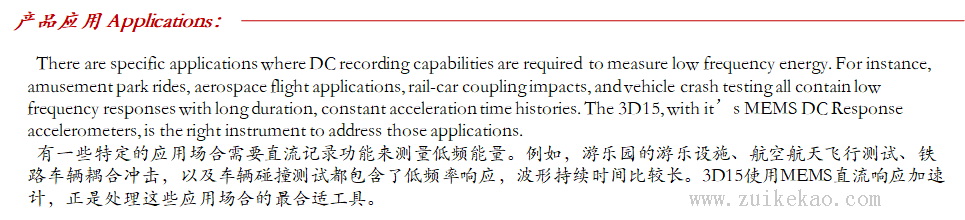

产品应用 Applications：

There are specific applications where DC recording capabilities are required to measure low frequency energy. For instance, amusement park rides, aerospace flight applications, rail-car coupling impacts, and vehicle crash testing all contain low frequency responses with long duration, constant acceleration time histories. The 3D15, with it’s MEMS DC Response accelerometers, is the right instrument to address those applications.

有一些特定的应用场合需要直流记录功能来测量低频能量。例如，游乐园的游乐设施、航空航天飞行测试、铁路车辆耦合冲击，以及车辆碰撞测试都包含了低频率响应，波形持续时间比较长。3D15使用MEMS直流响应加速计，正是处理这些应用场合的*合适工具。
