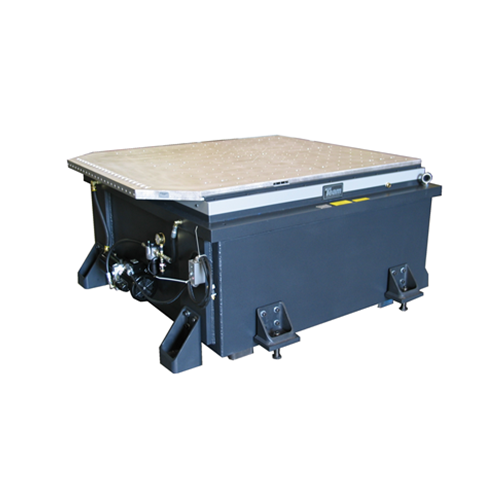

T-Film Slip Tables T膜超高倾覆力矩水平滑台

Overview 总览

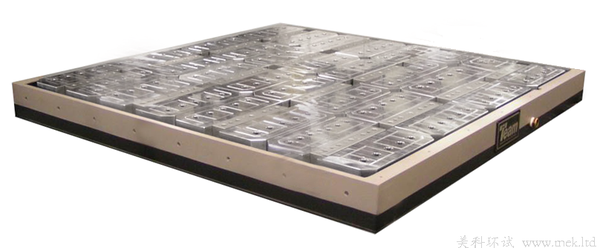

Team's unique, patented T-Film bearing system offers the rugged overturning moment capacity of the Team hydrostatic bearings combined with the full low pressure oil support of a granite or journal bearing oil film type slip table. This table system is assembled from a number of modular T-Film bearings. Each bearing measures 12" x 12" (300mm x 300mm) and allows the table to be configured to the customer's test article size and load requirements. The use of multiple bearings to completely support and guide the slip plate will offer excellent dynamic stability and damping for better test results. The design of the T-Film bearing provides a direct load path from the slip plate to the base, and is much more rigid than other guidance systems.

With a standard stroke limit of 2.5 inches (62.5 mm) and available stroke of up to 12 inches (300mm), Team T-film bearings will work with all modern long stroke shaker systems.

Team公司独特的T-Film轴承系统提供了Team静液压轴承的坚固的倾覆力矩能力，并结合了花岗岩或轴颈轴承油膜式滑台的全低压机油支撑。该工作台系统由许多模块化T膜轴承组装而成。每个轴承的尺寸为12“ x 12”（300mm x 300mm），并允许将工作台配置为满足客户的测试物品尺寸和负载要求。使用多个轴承完全支持和引导防滑板将提供良好的动态稳定性和阻尼，确保更好的测试结果。T-Film轴承的设计提供了从滑板到基座的直接载荷路径，并且比其他导向系统坚固得多。

Team T膜轴承的标准行程为2.5英寸（62.5毫米），可用行程**为12英寸（300毫米），可与所有现代长冲程振动台系统配合使用。

Features 特征

• Very high dynamic load capacity 极高的动态负载能力

• Excellent cross-axis control 出色的横轴控制

• Outstanding dynamic stiffness 出色的动态刚度

• Multiple load carrying bearings 多负荷轴承

• Low pressure oil system 低压油系统

• Team hydrostatic bearing design Team静压轴承设计

• Easy to switch to smaller slip plate Applications 易于切换到较小的滑板应用

Applications 应用领域

• Electronic component testing 电子元件测试

• Thermal + vibration with large fixtures 使用大型夹具的热环境和振动测试

• Long stroke low frequency testing 长行程低频测试

• Large cabinet testing 大柜体测试

• Satellite testing w 3m x 3m Table 卫星测试，带3m x 3m工作台

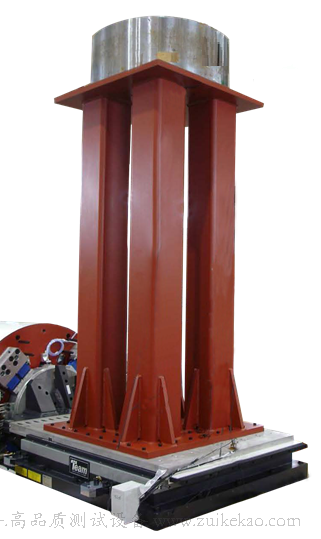

• High CG test articles 高CG测试试件

• Mil STD testing to 2000 Hz   Mil STD测试至2000 Hz

美国Team T-Film静液压轴承水平滑台,超高倾覆力矩,适合大柜体及卫星测试,高CG测试,MIL-STD标准测试(进口,T-Film Slip Tables)
