美国Lansmont PDT 700 大型跌落试验机,重型跌落测试台,零跌落试验机,大包装、重运输件、重包装跌落测试,GB 4857.5,ISO 2248,ASTM D5276标准(进口.兰斯蒙特)

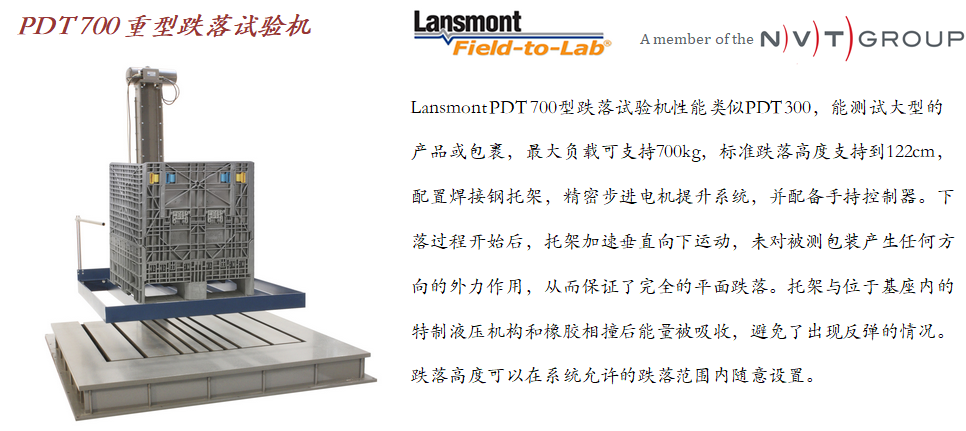

Lansmont PDT 700型跌落试验机性能类似PDT 300，能测试大型的产品或包裹，**负载可支持700kg，标准跌落高度支持到122cm，配置焊接钢托架，精密步进电机提升系统，并配备手持控制器。下落过程开始后，托架加速垂直向下运动，未对被测包装产生任何方向的外力作用，从而保证了完全的平面跌落。托架与位于基座内的特制液压机构和橡胶相撞后能量被吸收，避免了出现反弹的情况。跌落高度可以在系统允许的跌落范围内随意设置。

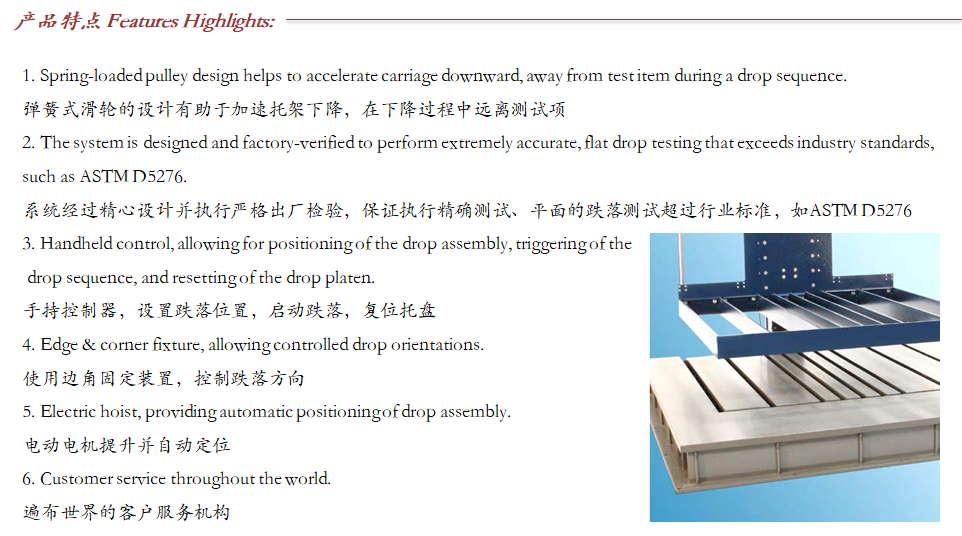

产品特点 Features Highlights:

1. Spring-loaded pulley design helps to accelerate carriage downward, away from test item during a drop sequence.

弹簧式滑轮的设计有助于加速托架下降，在下降过程中远离测试项

2. The system is designed and factory-verified to perform extremely accurate, flat drop testing that exceeds industry standards, such as ASTM D5276.

系统经过精心设计并执行严格出厂检验，保证执行精确测试、平面的跌落测试超过行业标准，如ASTM D5276

3. Handheld control, allowing for positioning of the drop assembly, triggering of the

drop sequence, and resetting of the drop platen.

手持控制器，设置跌落位置，启动跌落，复位托盘

4. Edge & corner fixture, allowing controlled drop orientations.

使用边角固定装置，控制跌落方向

5. Electric hoist, providing automatic positioning of drop assembly.

电动电机提升并自动定位

6. Customer service throughout the world.

遍布世界的客户服务机构

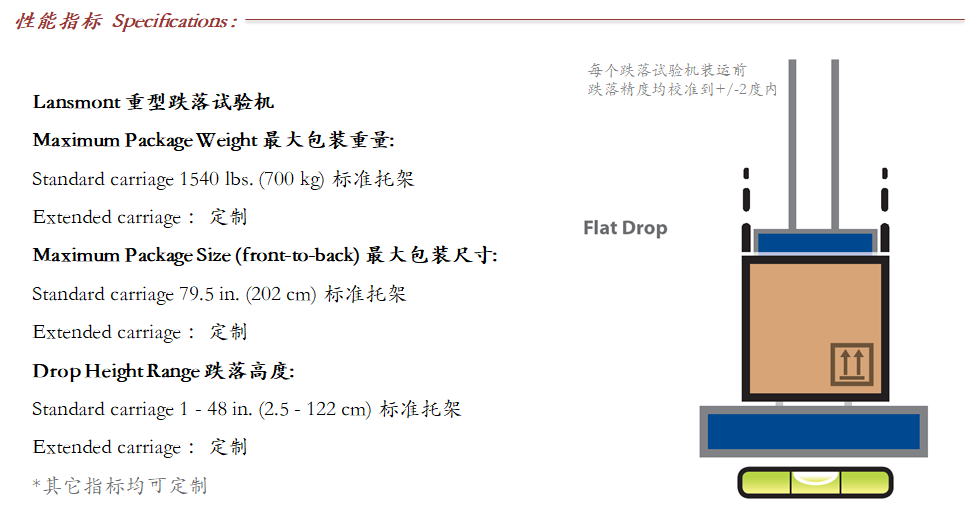

性能指标   Specifications :

Lansmont 重型跌落试验机

Maximum Package Weight **包装重量:

Standard carriage 1540 lbs. (700 kg) 标准托架

Extended carriage ：定制

Maximum Package Size (front-to-back) **包装尺寸:

Standard carriage 79.5 in. (202 cm) 标准托架

Extended carriage ：定制

Drop Height Range 跌落高度:

Standard carriage 1 - 48 in. (2.5 - 122 cm) 标准托架

Extended carriage ：定制

*其它指标均可定制

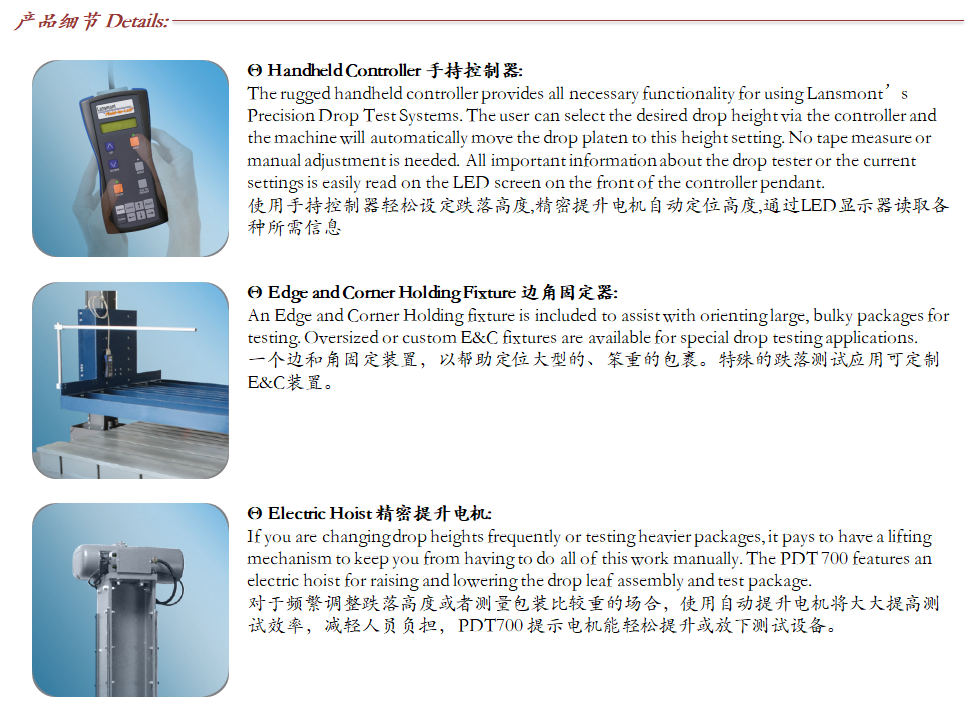

产品细节 Details:

Handheld Controller 手持控制器:

The rugged handheld controller provides all necessary functionality for using Lansmont’s Precision Drop Test Systems. The user can select the desired drop height via the controller and the machine will automatically move the drop platen to this height setting. No tape measure or manual adjustment is needed. All important information about the drop tester or the current settings is easily read on the LED screen on the front of the controller pendant.

使用手持控制器轻松设定跌落高度,精密提升电机自动定位高度,通过LED显示器读取各种所需信息

Edge and Corner Holding Fixture 边角固定器:

An Edge and Corner Holding fixture is included to assist with orienting large, bulky packages for testing. Oversized or custom E&C fixtures are available for special drop testing applications.

一个边和角固定装置，以帮助定位大型的、笨重的包裹。特殊的跌落测试应用可定制E&C装置。

Electric Hoist 精密提升电机:

If you are changing drop heights frequently or testing heavier packages, it pays to have a lifting mechanism to keep you from having to do all of this work manually. The PDT 700 features an electric hoist for raising and lowering the drop leaf assembly and test package.

对于频繁调整跌落高度或者测量包装比较重的场合，使用自动提升电机将大大提高测试效率，减轻人员负担， PDT700 提示电机能轻松提升或放下测试设备。

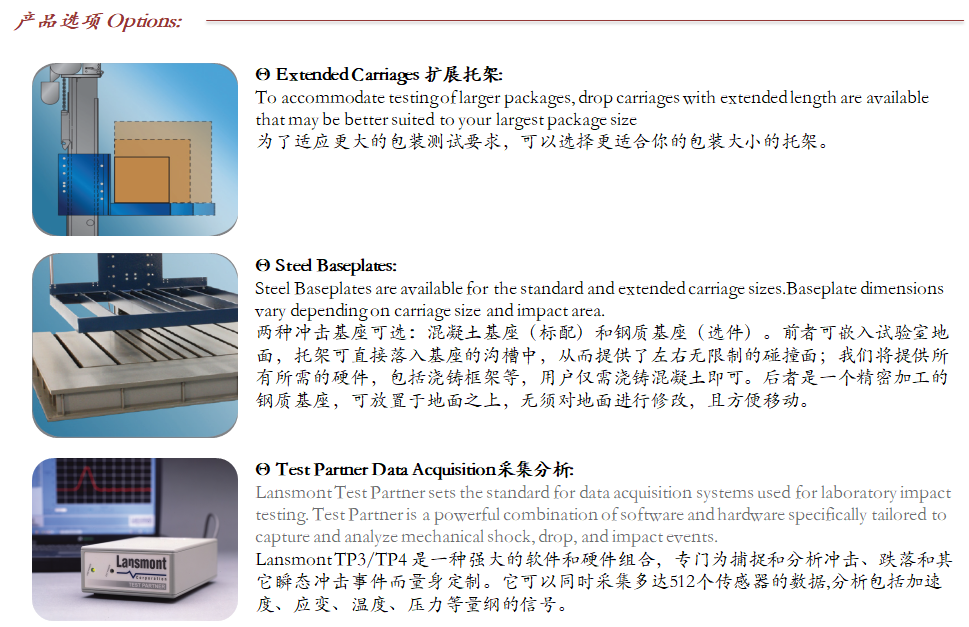

产品选项 Options:

Extended Carriages 扩展托架:

To accommodate testing of larger packages, drop carriages with extended length are available that may be better suited to your largest package size

为了适应更大的包装测试要求，可以选择更适合你的包装大小的托架。

Steel Baseplates:

Steel Baseplates are available for the standard and extended carriage sizes.Baseplate dimensions vary depending on carriage size and impact area.

两种冲击基座可选：混凝土基座（标配）和钢质基座（选件）。前者可嵌入试验室地面，托架可直接落入基座的沟槽中，从而提供了左右无限制的碰撞面；我们将提供所有所需的硬件，包括浇铸框架等，用户仅需浇铸混凝土即可。后者是一个精密加工的钢质基座，可放置于地面之上，无须对地面进行修改，且方便移动。

Test Partner Data Acquisition采集分析:

Lansmont Test Partner sets the standard for data acquisition systems used for laboratory impact testing. Test Partner is a powerful combination of software and hardware specifically tailored to capture and analyze mechanical shock, drop, and impact events.

Lansmont TP3/TP4 是一种强大的软件和硬件组合，专门为捕捉和分析冲击、跌落和其它瞬态冲击事件而量身定制。它可以同时采集多达512个传感器的数据,分析包括加速度、应变、温度、压力等量纲的信号。
